Import

When you create a dashboard, you can choose to Import.

In the Import dashboard dialog, you have several options to source the dashboard JSON for the import:

  • Browse for a JSON file on your machine.

  • Select a dashboard JSON that is stored in your database.

  • Drag and drop or paste a dashboard JSON to the editor.

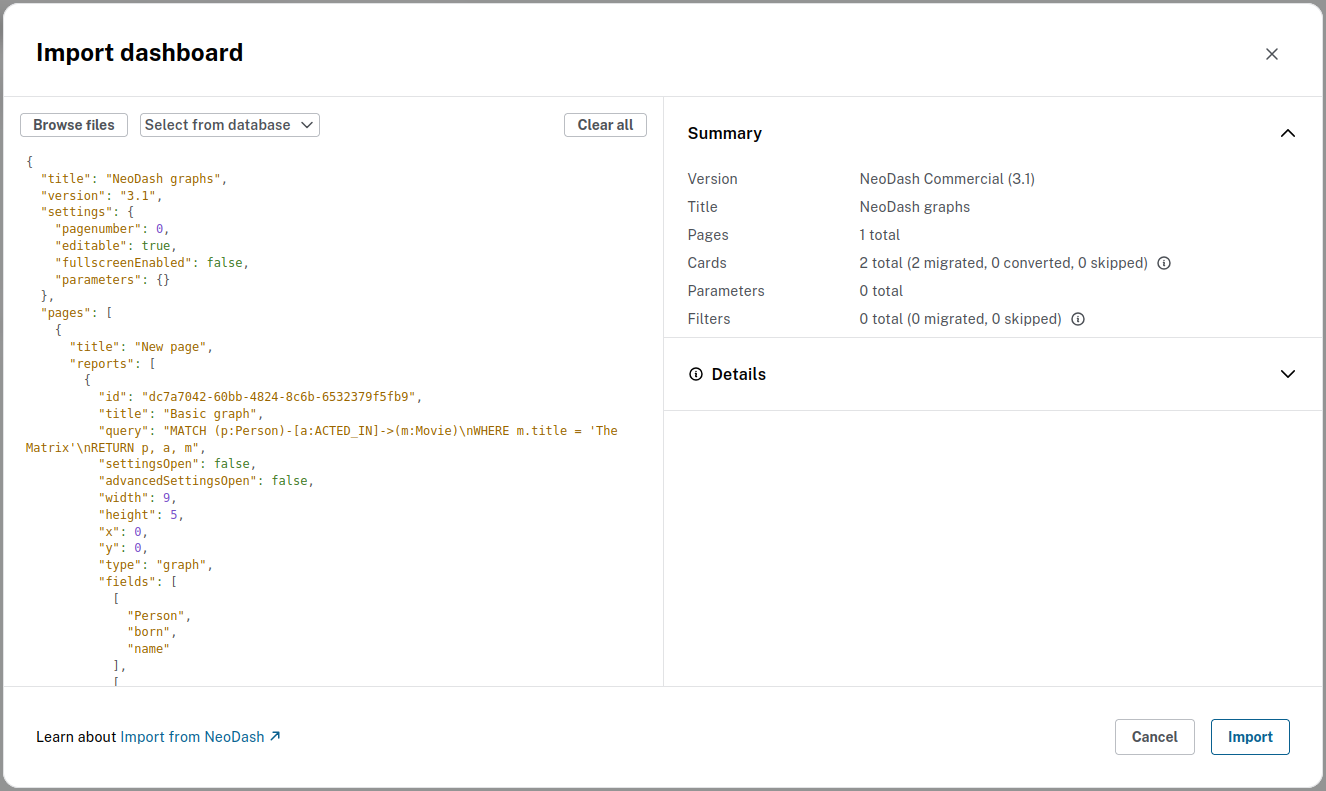

import dashboard dialog
Figure 1. Import dashboard dialog

Note that you only have the option to select a stored dashboard JSON when there are stored dashboards in your database.

It is not possible to delete stored dashboards from the database through the dashboard application.

If the dashboard JSON selected for the import is syntactically correct, the Import dashboard dialog displays a Summary and Details for the import. This means that the import can be run.

Supported reports

NeoDash Aura dashboards

Table

✅

Graph

✅

Bar chart

✅

Pie chart

✅

Line chart

✅

Map

Converted to graph

Single value

✅

Raw JSON

❌

Parameter select

Only node and relationship properties

Form

❌

iFrame

❌

Markdown

✅

Advanced NeoDash reports added via the Advanced visualization extension are not supported.

Summary

Data fields relevant to the import are displayed under Summary.

The latest version of both NeoDash Labs and NeoDash commercial are supported. However, the import procedure can always attempt to import a dashboard JSON, even if the version differs from those.

The summary includes:

  • the number of imported pages, cards, parameters and filters.

  • the number of cards and filters that were migrated, converted or skipped.

    • Migrated cards and filters have a type that is supported by Aura dashboards.

    • Converted cards and filters have a closest supported similar type available in Aura dashboards. For example a NeoDash commercial map report is converted to an Aura dashboard graph visualization.

    • The import procedure skips any types it can neither migrate nor convert.

Note that not all settings from NeoDash reports have a counterpart in Aura dashboards. Any such settings do not affect the import and are not preserved by the import procedure.

Details

Expand the Details to inspect incidents reported during the import.

Entries include the location of the incident in the dashboard JSON, that is, the specific page and report, as well as a description what went wrong or is of note.

Descriptions can be, for example:

  • Unsupported parameter select types, resulting in skipped filters.

  • Missing entity and/or property types, missing parameter names.
